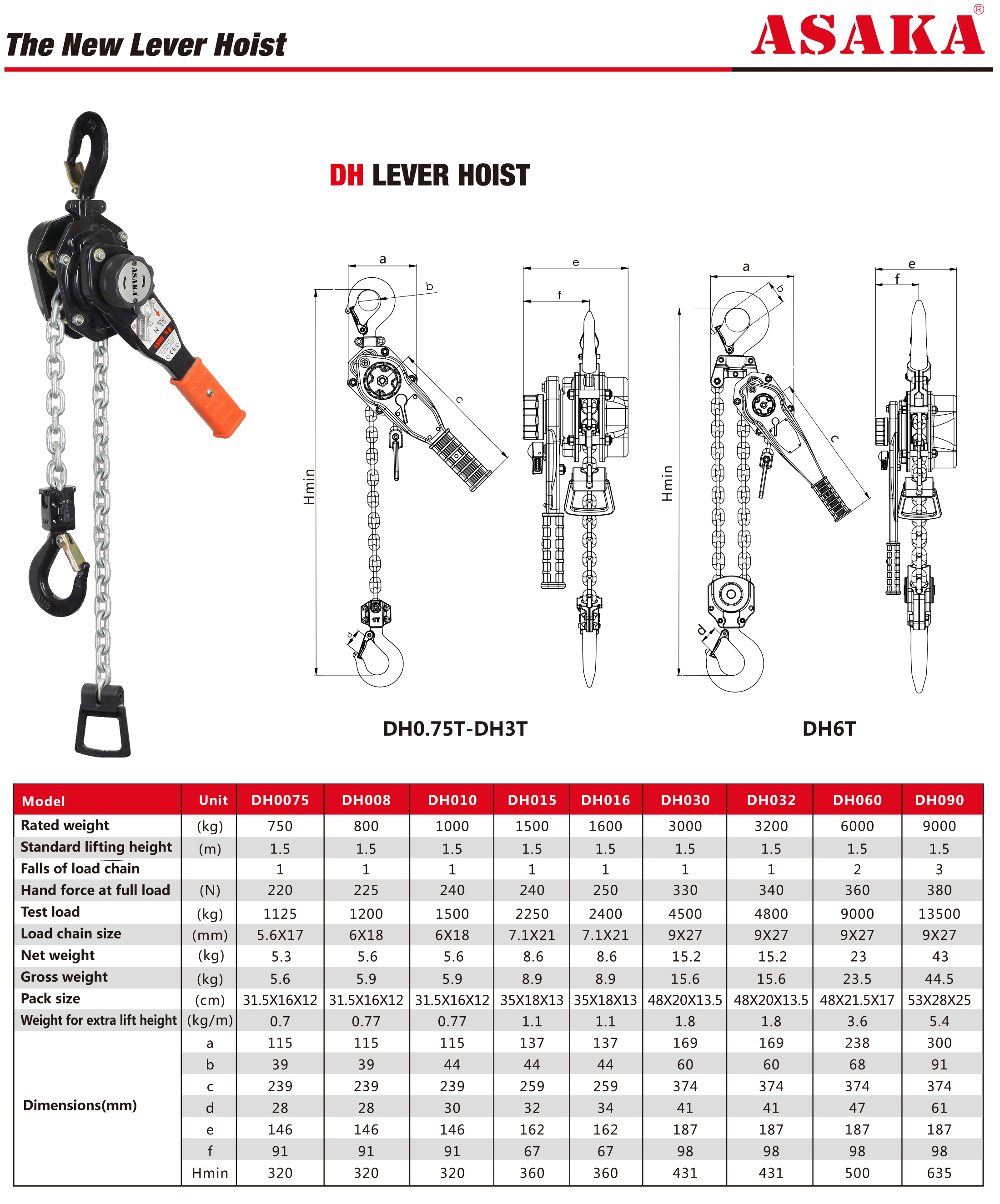

DH Type Manual Lever Hoist
Capacity 750 - 9000 kg
Features improved tech-niques and ergonomical styling.
A good, versatile,all round ratchet lever hoist for demand-ing conditions.
Features
-The proven stamped steel housing provides extremelylow weight without limiting the reliability and sturdinessof the unit.
-The short handlever is fitted with an ergonomic rubbergrip.
-Standard free chaining device to quickly attach the loador to pull the chain through the hoist in both directions. Alloyed steel link chain with zinc-plated , electrophoretic chain finish, in accordance with national andinternational standards and regulations.
-Load hooks are made from non-aging, high tensile steel and fitted with robustsafety latches.
-End anchor is made of high-strength nylon material, which is more environmentally friendly
Option
-All capacities can be equopped with an overload protectiondevice in the form of a slip clutch which is factory
preset to approx 0.25%±15% overload.
Advantages：
Shell
As a result of the design of the chain block, the chain guide to the more relaxed, the whole operation of the lower noise.
Guide block
The design of the shell abandoned the traditional straight-line design, table surface curve, so that the appearance of more beautiful, shell use more solid for a long time.
Reversing handle
The handle is designed with a small dots in the operation more comfortable, not easy to fall.

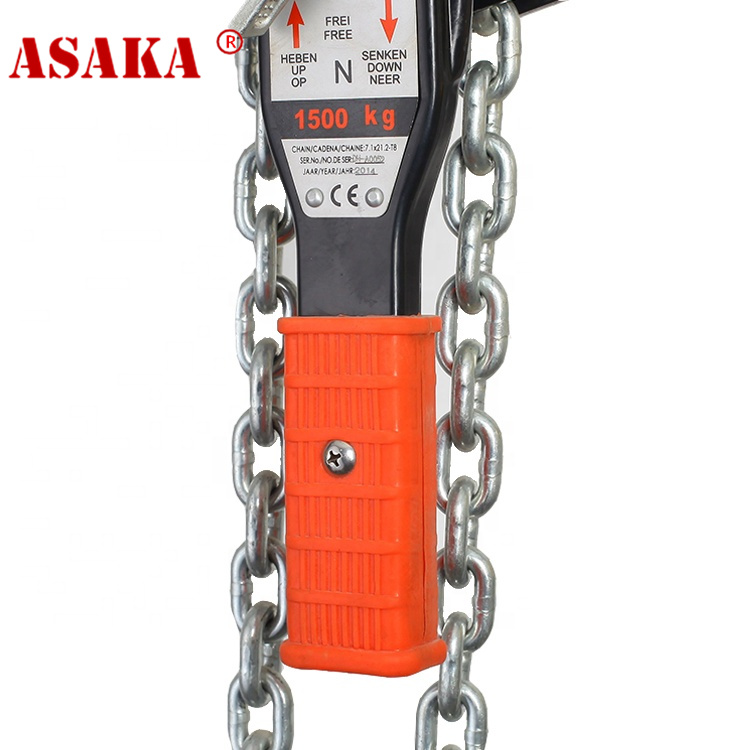

Handle sets
Handle cover with rubber material, so that the operator to use more comfortable; The handle sleeve is screwed and the handle is not easy slide out the handle.
Product features:

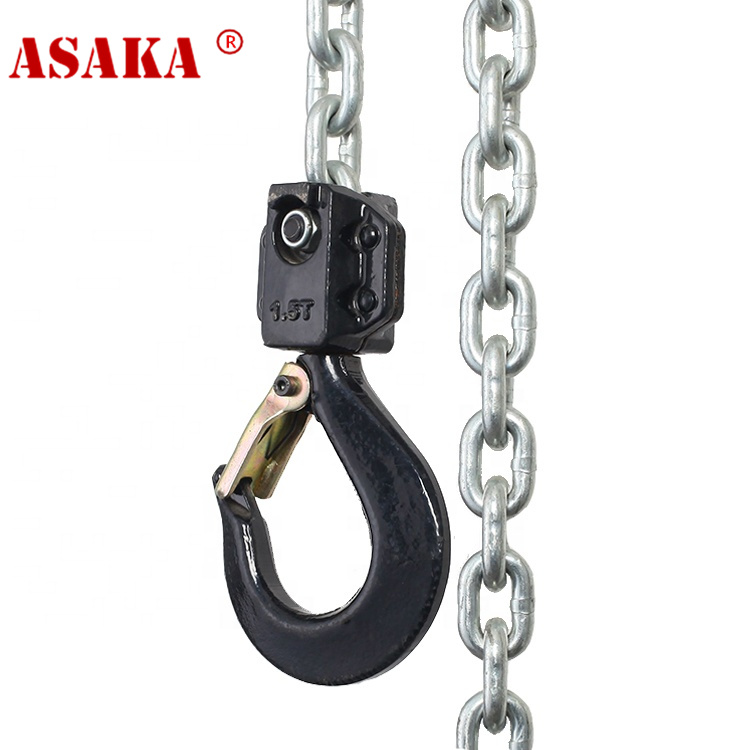

1. Hanging transposition and load hooks made of anti-aging, high-strength alloy, when the case of overload occurs in the case of the first deformed without sudden breakage.
2. Hook with a solid safety lock, free rotation 360°.
3. In line with the design of the body of the handle to make the block easy to operate.
4. Closed design can protect the internal components from pollution.
