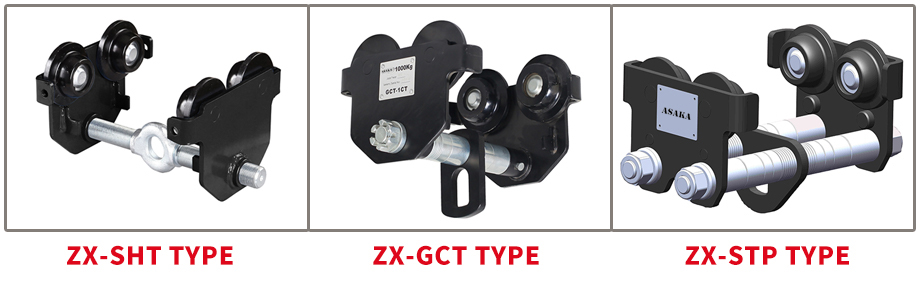

Manual Push Trolley
ASAKA Push and Geared trolley
Capacity 500 - 10000kg
The trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment.
Features
•It has excellent rolling features due to machined steel wheels mounted on prelubricated, encapsulated ball bearings.
•Adjustable to fit a wide range of beam widths and profiles。
•Adjustments are made by rotating the clevis load bar which also ensures the centred positioning of the hoist in the clevis
• The trolley wheels are designed for a max. beam profile incline of 14%
Options
• Locking device to secure the trolley in position on the beam
• Corrosion resistant version.

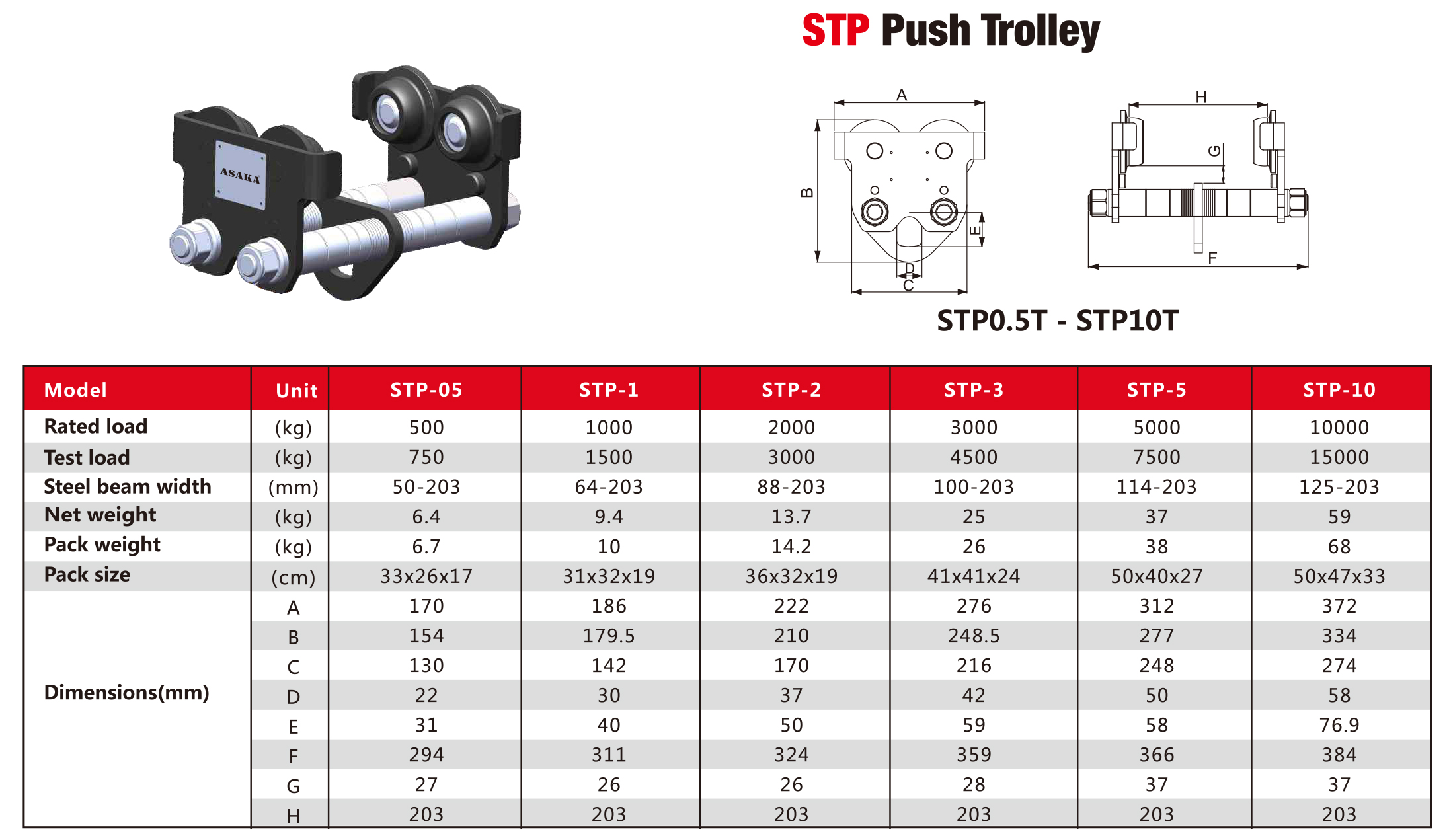

STP Push Trolley meet and exceed all the requirements within BS EN 13157: 2004+A1:2009 and AS1418.2.
Features
· STP trolleys are designed to provide smooth and easy traversing
·Twin bar trolleys available
·The anti-drop plates design ensures extra safety, and also prevents damage to wheels when contacting end rail stoppers
·Extended beam width available
·Wheels run on sealed ball bearings for smoother rolling with less effort and maintenance
·Anti-Corrosion versions available
