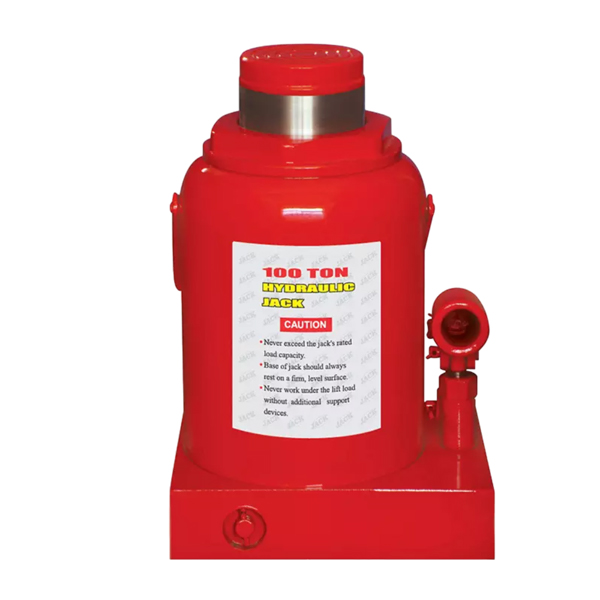

BJ Type Bottle Jack
▶Hydraulic bottle jack designed for residential and commercial use;

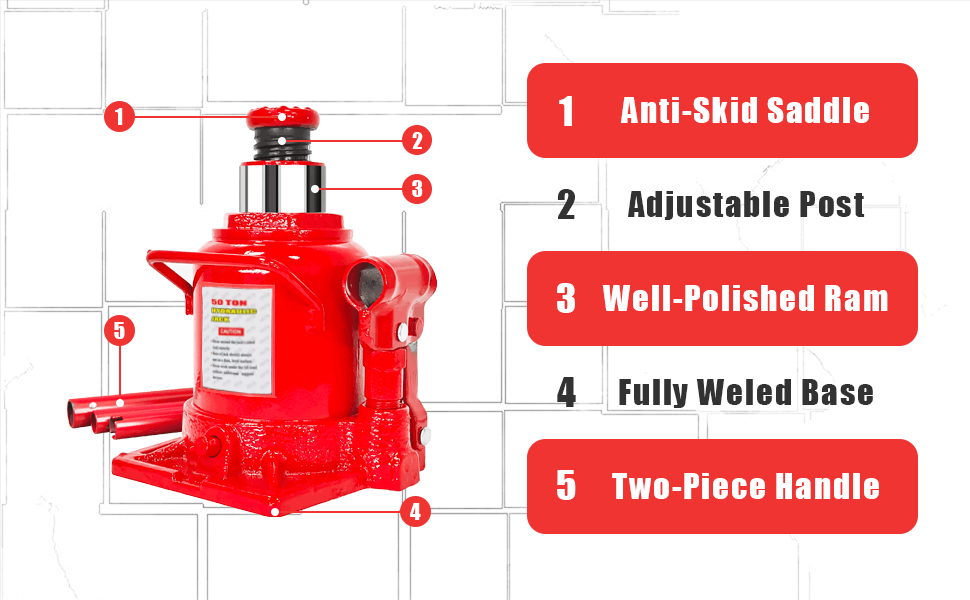

▶Serrated, heat treated saddle provides generous lifting area and secure grip Features a lifting range of 158 mm to 480mm with a 2 ton-100 ton capacity;
▶Adjustable screw top extension adds versatility Glide-action pressure pump is designed to lift with minimal effort;
▶Integrated built-in oil-bypass and overload valve that protects the hydraulic system from extending beyond limits
▶Meets ASME AU EM safety standards and includes a limited 1 year manufacturer warranty
![M)[KA~UVZ6C`IC[V~]UAM~K](http://www.asaka-lifting.com/uploads/MKAUVZ6CICVUAMK.jpg)
| Model | Lif.W | Min.H | Lif.H | Adj.H | Max.H | N.W | Package | Measurement | Qty/Ctn | G.W | 20' Cont. |
| (T) | (mm) | (mm) | (mm) | (mm) | (kg) | (cm) | (cm) | (kg) | (pcs) | ||
| BJ0203(QYL2) | 2 | 158 | 90 | 60 | 308 | 2.23 | Color Box | 52x25.5x19 | 10 | 23 | 7800 |
| BJ0303(QYL3) | 3-4 | 195 | 125 | 60 | 380 | 3.2 | Color Box | 46x26.5x22.5 | 8 | 26 | 5400 |
| BJ0503(QYL5) | 5-6 | 197 | 125 | 60 | 382 | 4.1 | Color Box | 38x27.5x22.5 | 6 | 25 | 4200 |
| BJ0803(QYL8) | 8 | 205 | 125 | 60 | 390 | 4.9 | Color Box | 29.5x27.5x22.5 | 4 | 20 | 3340 |
| BJ1003(QYL10) | 10 | 205 | 125 | 60 | 390 | 5.6 | Color Box | 30.5x29.5x24 | 4 | 23 | 3000 |

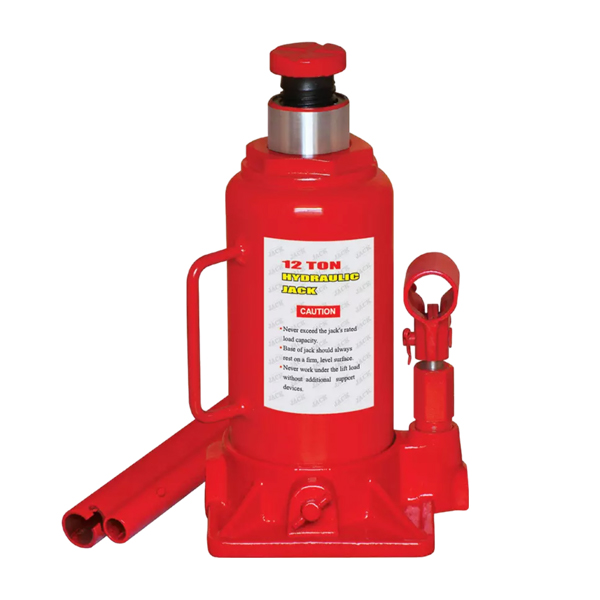

| BJ1203(QYL12) | 12 | 215 | 125 | 60 | 400 | 6.5 | Color Box | 30.5x16.5x24 | 2 | 13.5 | 2500 |
| BJ1503(QYL15) | 15-16 | 225 | 140 | 60 | 425 | 7.8 | Color Box | 31.5x17x24.5 | 2 | 16 | 2250 |
| BJ2003(QYL20) | 20 | 244 | 145 | 60 | 449 | 10.2 | Color Box | 34.5x19.5x27 | 2 | 21 | 1500 |

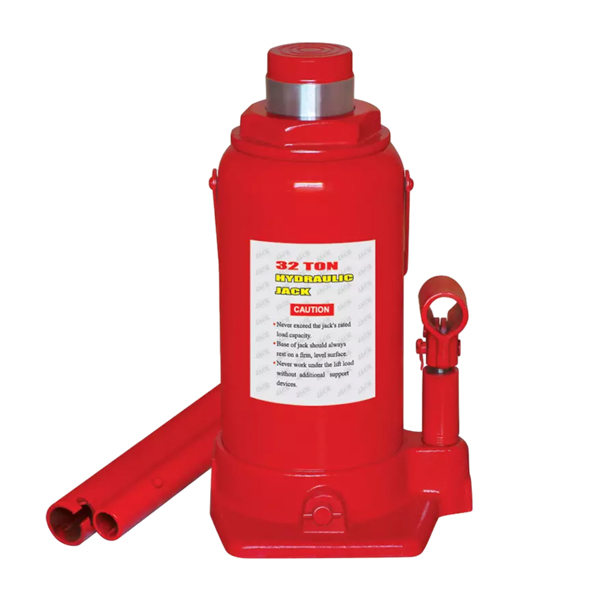

| BJ3203A(QYL32) | 30-32 | 285 | 180 | / | 465 | 13.5 | Color Box | 37.5x19.5x31 | 2 | 28 | 1240 |
| BJ3203(QYL32) | 30-32 | 285 | 180 | / | 465 | 14 | Color Box | 37.5x19.5x31 | 2 | 28.5 | 1060 |
| BJ5003(QYL50) | 50 | 300 | 180 | / | 480 | 29.5 | Carton | 26x24x33 | 1 | 30 | 540 |
| Model | Lif.W | Min.H | Lif.H | Adj.H | Max.H | N.W | Package | Measurement | Qty/Ctn | G.W | 20' Cont. |
| (T) | (mm) | (mm) | (mm) | (mm) | (kg) | (cm) | (cm) | (kg) | (pcs) | ||
| BJ0203- S(QYL2) | 2 | 158 | 90 | 60 | 308 | 2.23 | Blow Case | 34.5x34.5x25.5 | 6 | 16 | 4800 |
| BJ0403-S(QYL4) | 3 | 195 | 125 | 60 | 380 | 3.2 | Blow Case | 38.5x35.5x29.5 | 6 | 23 | 4200 |
| BJ0603-S(QYL6) | 6 | 197 | 125 | 60 | 382 | 4.1 | Blow Case | 39.5x26.5x30.5 | 20 | 3500 | |
| BJ0803-S(QYL8) | 8 | 205 | 125 | 60 | 390 | 4.9 | Blow Case | 39.5x26.5x30.5 | 4 | 24 | 3500 |
| BJ1003-S(QYL10) | 10 | 205 | 125 | 60 | 390 | 5.6 | Blow Case | 31x22.5x32.5 | 2 | 14 | 1280 |
| BJ1203-S(QYL12) | 12 | 215 | 125 | 60 | 400 | 6.5 | Blow Case | 31x22.5x32.5 | 2 | 16 | 1280 |
