ASAKA Handheld Inverter Chain Hoist 125kg 250kg 500kg 1000kg

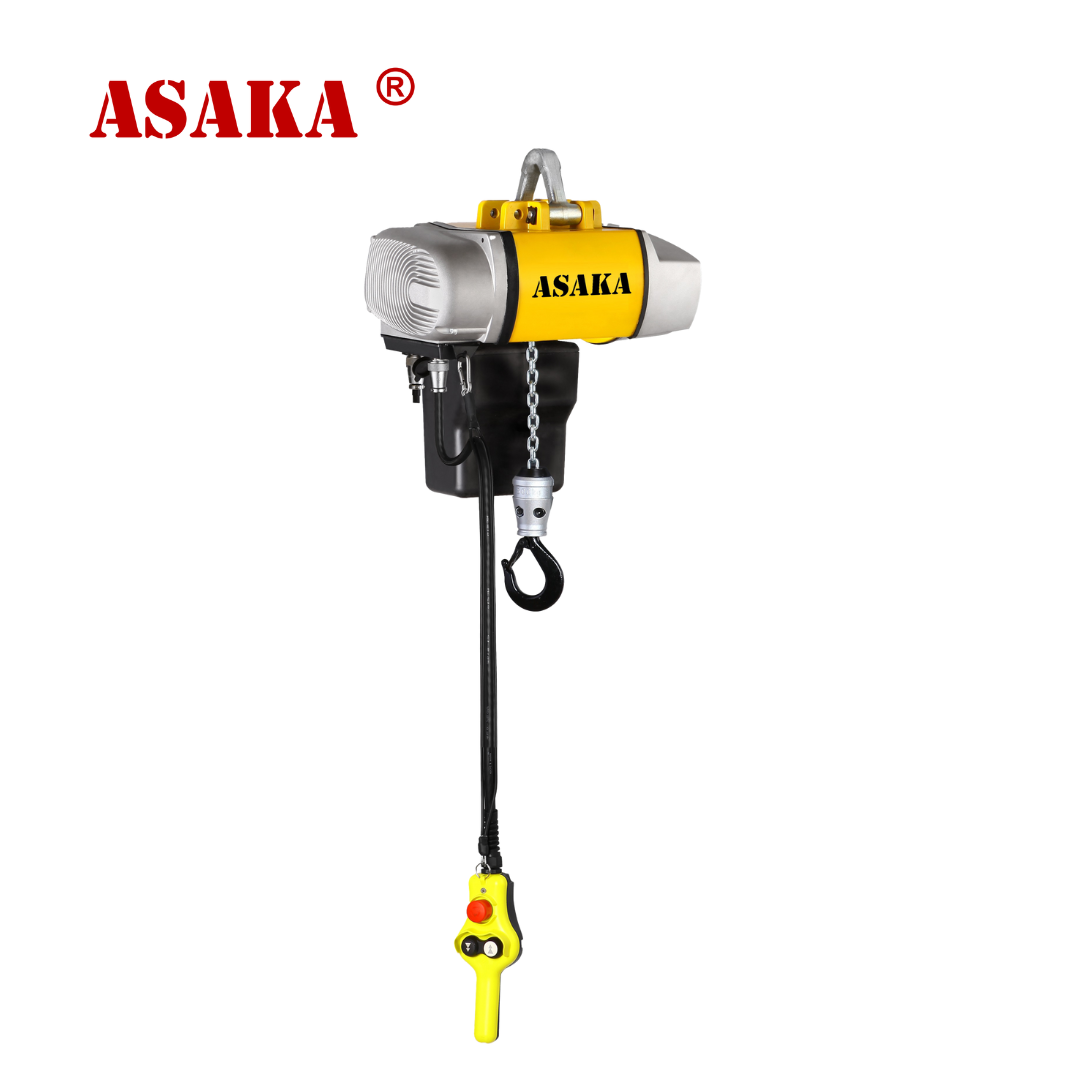

ASAKA Handheld Inverter Chain Hoist
Features
●Hoist shell: All aluminum alloy die -casting shell (including gear box and motor back shel); CNC- body processing; compact structure and good airtightness; surface automotive grade paint.
●Gearbox: Maintenance free gearbox. The gear is a high- strength helical gear, which has high transmission efficiency and smoothness, and lower noise and higher service life.
●Friction clutch: It can effectively protect against overload and avoid safety accidents caused by overload.
●Actuator: Loss of electric brake, power off brake. The double friction surface provides high friction.The brakes are smooth and wear less and safer.
Electric machine: Energy- efficient two - speed motor with thermal protection to protect the motor.
●Chain: RUD chain. Longer service life and more stable.
●Guide chain part: Customized formula high- strength wear -resistant engineering plastics as a chain guide.Reduce chain wear and noise. Use high- strength nylon chain links to prevent inadvertentknotting of chains into the chain guide.
●Electrical part: Integrated circuit board control. Multi-layer control protection.

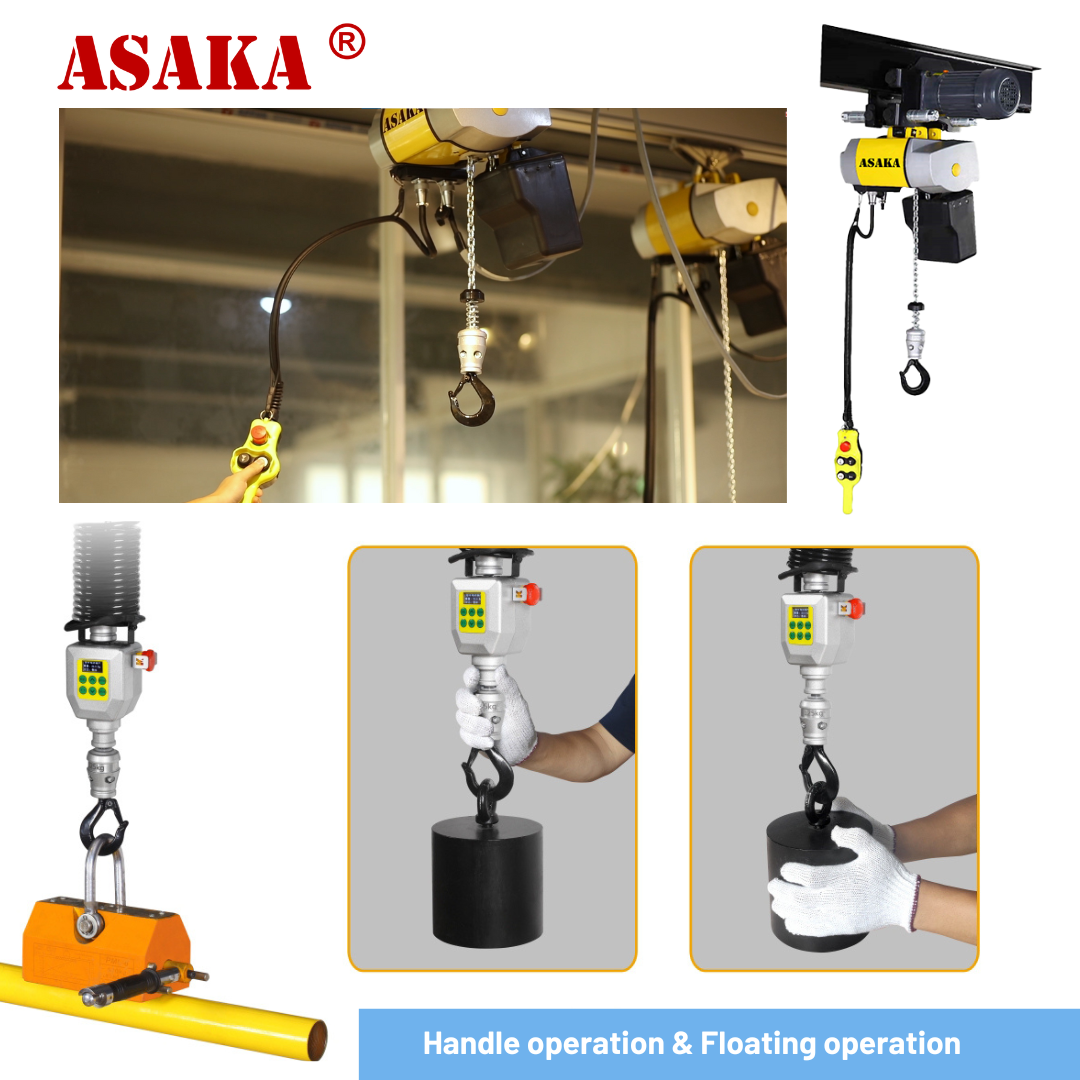

●Handheld control: All- aluminum hand- - held handle for more comprehensive protection. The ergonomically designed handle makes the grip comfortable and sensitive without delay. Non -contact button, no mechanical life loss, longer life. The grip bump design ensures friction with oil in hand.
●Hook: It is made of alloy steel forging. 360° free to rotate. Hooks come standard with safety uses for safety.
Dimensions
Features
●Hoist shell: All aluminum alloy die -casting shell (including gear box and motor back shel); CNC- body processing; compact structure and good airtightness; surface automotive grade paint.
●Gearbox: Maintenance free gearbox. The gear is a high- strength helical gear, which has high transmission efficiency and smoothness, and lower noise and higher service life.
●Friction clutch: It can effectively protect against overload and avoid safety accidents caused by overload.
●Actuator: Loss of electric brake, power off brake. The double friction surface provides high friction.The brakes are smooth and wear less and safer.
Electric machine: Energy- efficient two - speed motor with thermal protection to protect the motor.
●Chain: RUD chain. Longer service life and more stable.
●Guide chain part: Customized formula high- strength wear -resistant engineering plastics as a chain guide.Reduce chain wear and noise. Use high- strength nylon chain links to prevent inadvertentknotting of chains into the chain guide.
●Electrical part: Integrated circuit board control. Multi-layer control protection.
●Handheld control: All- aluminum hand- - held handle for more comprehensive protection. The ergonomically designed handle makes the grip comfortable and sensitive without delay. Non -contact button, no mechanical life loss, longer life. The grip bump design ensures friction with oil in hand.
●Hook: It is made of alloy steel forging. 360° free to rotate. Hooks come standard with safety uses for safety.
Dimensions
| Model | Capacity (Ton) | Lifting Height (M) | Working Level (ISO) |
Speed（M/Min） | Load Chain (mm) | Falls of chain | Motor Power (kw) | Motor Speed (RPM) | Motor Current (A) | Voltage (V/HZ) | Duty Cycle (FC%) | N.W in 3M (kg) |
| ZXDCHSF-125 | 0.125 | 2-18 | M5 | 5/20 | 4X12 | 1 | 0.7 | 2860 | 2.8 | 220/50 | 40 | 23 |
| ZXDCHSF-250 | 0.5 | 2-18 | M5 | 2/8 | 4X12 | 1 | 0.7 | 2860 | 2.8 | 220/50 | 40 | 23 |
| ZXDCHSF-500 | 1 | 2-15 | M5 | 1.5/6 | 5X15 | 1 | 0.7 | 2860 | 2.8 | 220/50 | 40 | 23.6 |
